PRODUCT – NASPA Floor 50

PRODUCT – NASPA Floor 50

NASPA Floor 50

NASPA Floor 50 Steel floor decking system combine with concrete for flooring work of buildings which is one of the innovative construction method that has been accepted among various projects.

Size

Composite floor decking systems

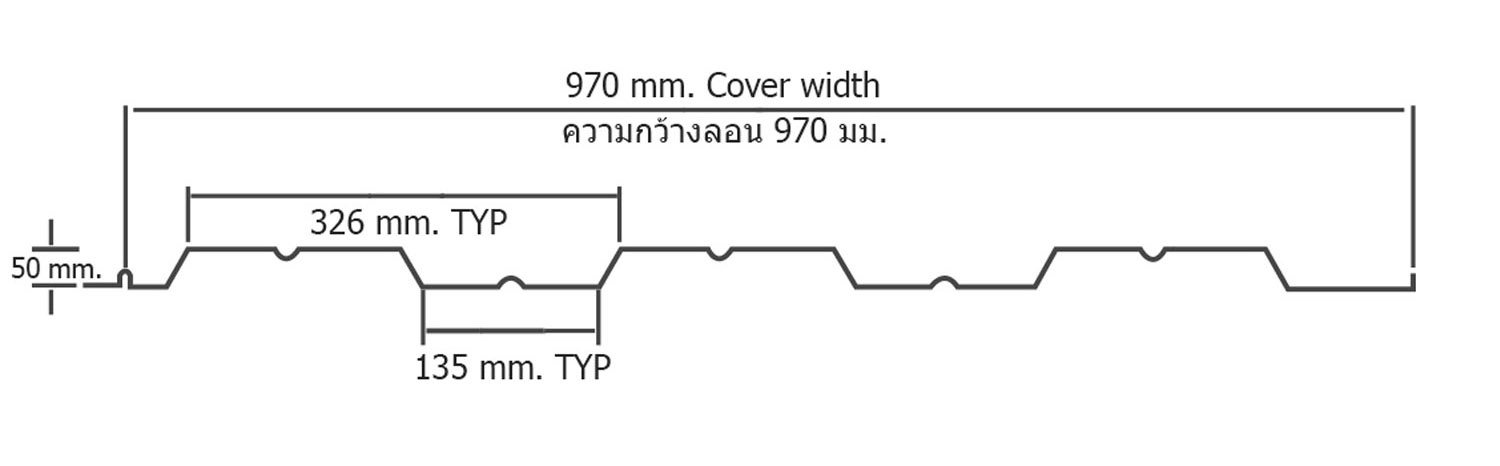

Profile Features
ความกว้างลอน / ความสูงลอน (มม.)
Cover Width / Profile Height (mm)
960 / 50
ความหนา (มม.)
Thickness (mm)
0.80, 1.00, 1.20
มวลสารเคลือบ
Coating Mass
GALVANIZED : Z275 (275 กรัม/ตร.ม. (g/m²))
SUPERDYMA® : K18 (180 กรัม/ตร.ม. (g/m²))
ความแข็งแรงเหล็ก
Min. Yield Strength
300 MPa
มาตรฐาน
Standard
ASTM A653

  ลักษณะเด่นของผลิตภัณฑ์

  • No rust from surface coating with Galvanized or SupaerDyma
  • Less weight by profile designing help concrete saving that can
    reduce the overall weight of the building structure
  • Fast construction which acting
    as the shutter box and supporting steels
  • Save labour from less working procedure and light
  • Overall cost saving from no requirement for scaffolder supported bracing and heavy equipment
